After being inspired by Rick Bobbitts brew sculpture, I started on a journey to build a weld free brew system controlled by the BCS-460 (Embedded Concepts). I was struggling with “weldless” part until an electrician friend of mine told me about “Uni-Strut” or “Super-Strut” pieces. Think giant “erector set” stuff – frames, corners, angles, etc. For us children of the 60’s (thanks Mom!) – we got to play with this stuff as kids.
Enough yammering – here are some pics!
Controller - manual control powered, no temp set points

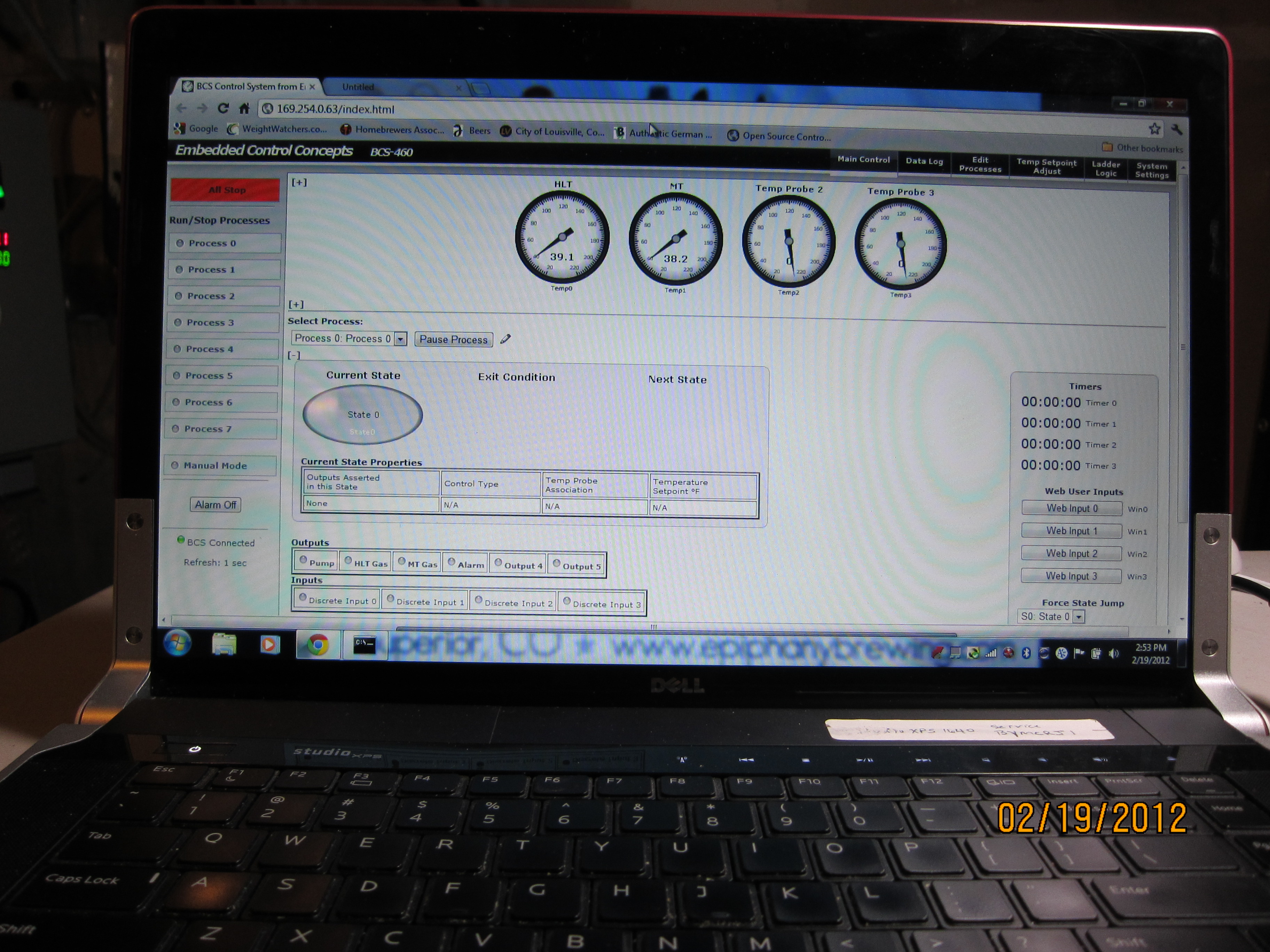

Laptop with "out of the box" configuration
Brew stand, controller, pump in a box

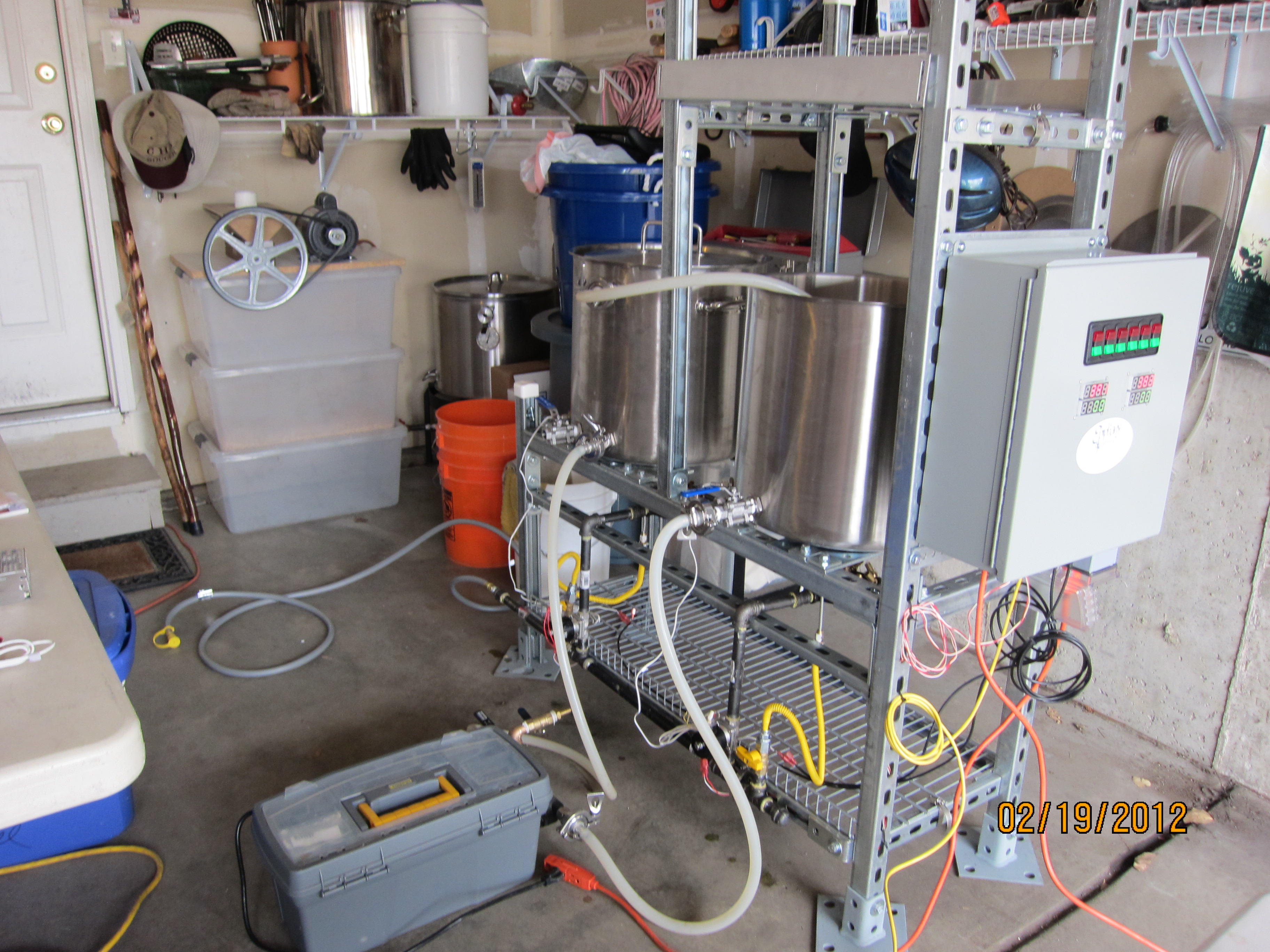

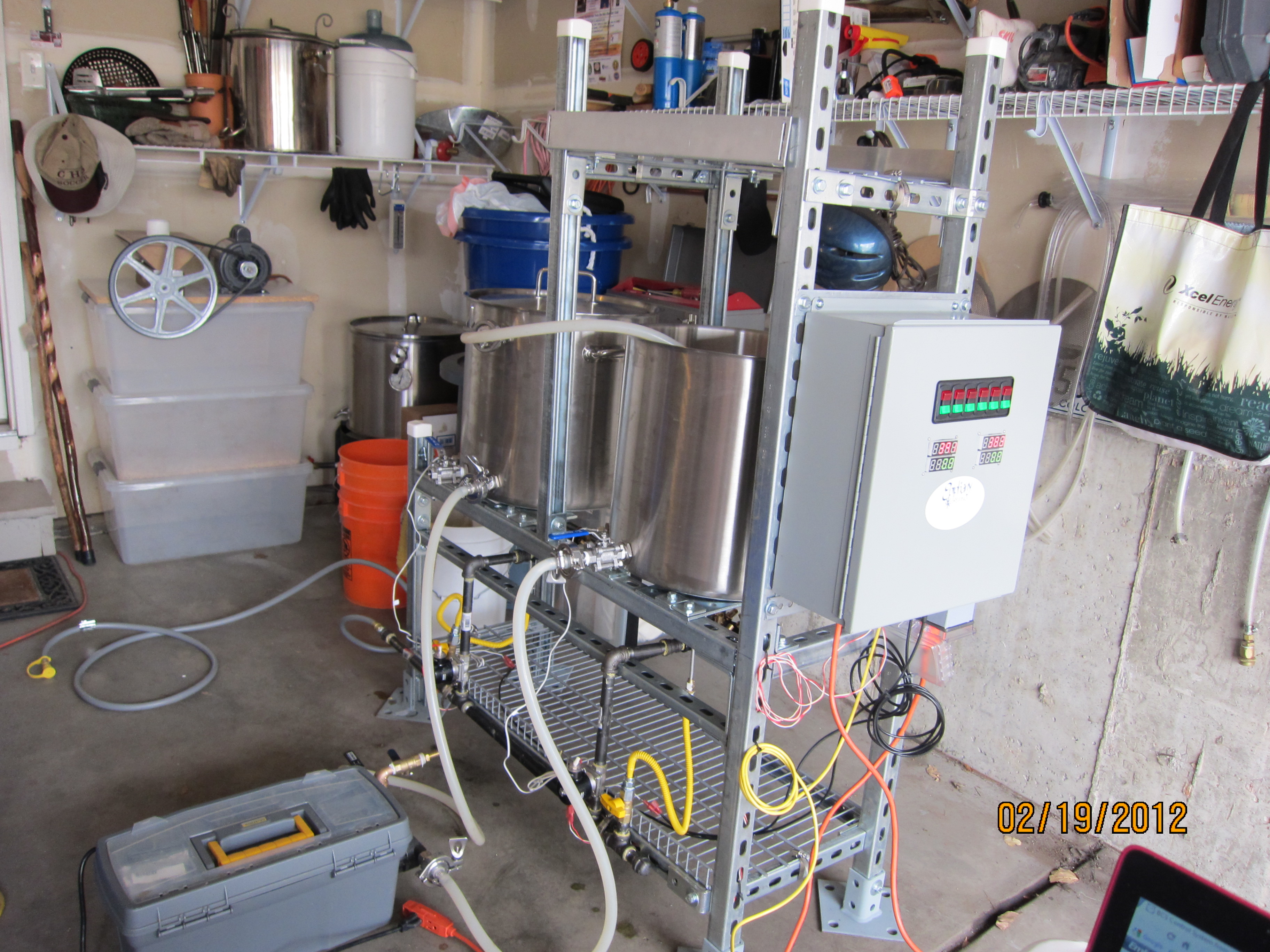

Brew Stand

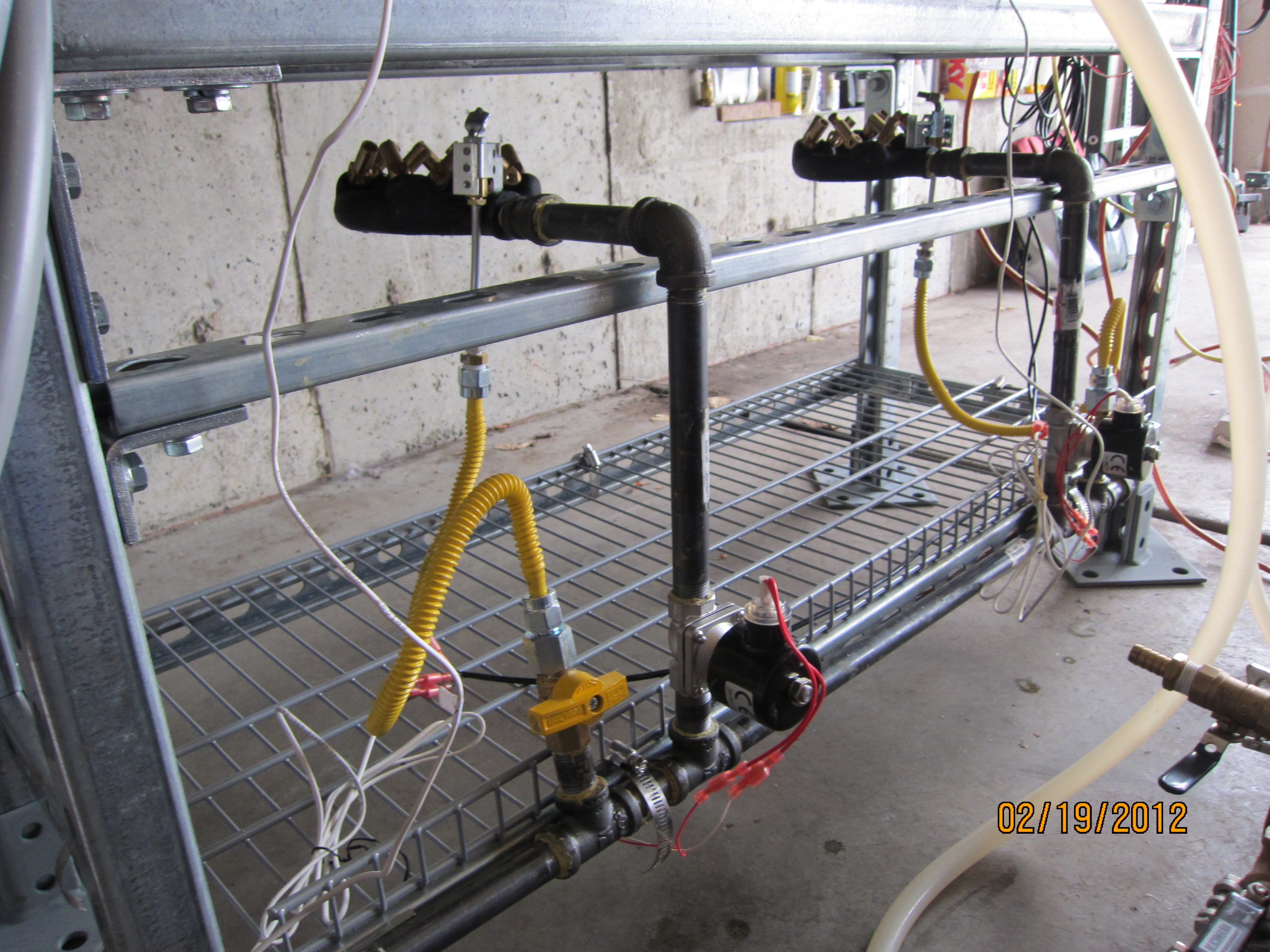

Gas Burners and Valves

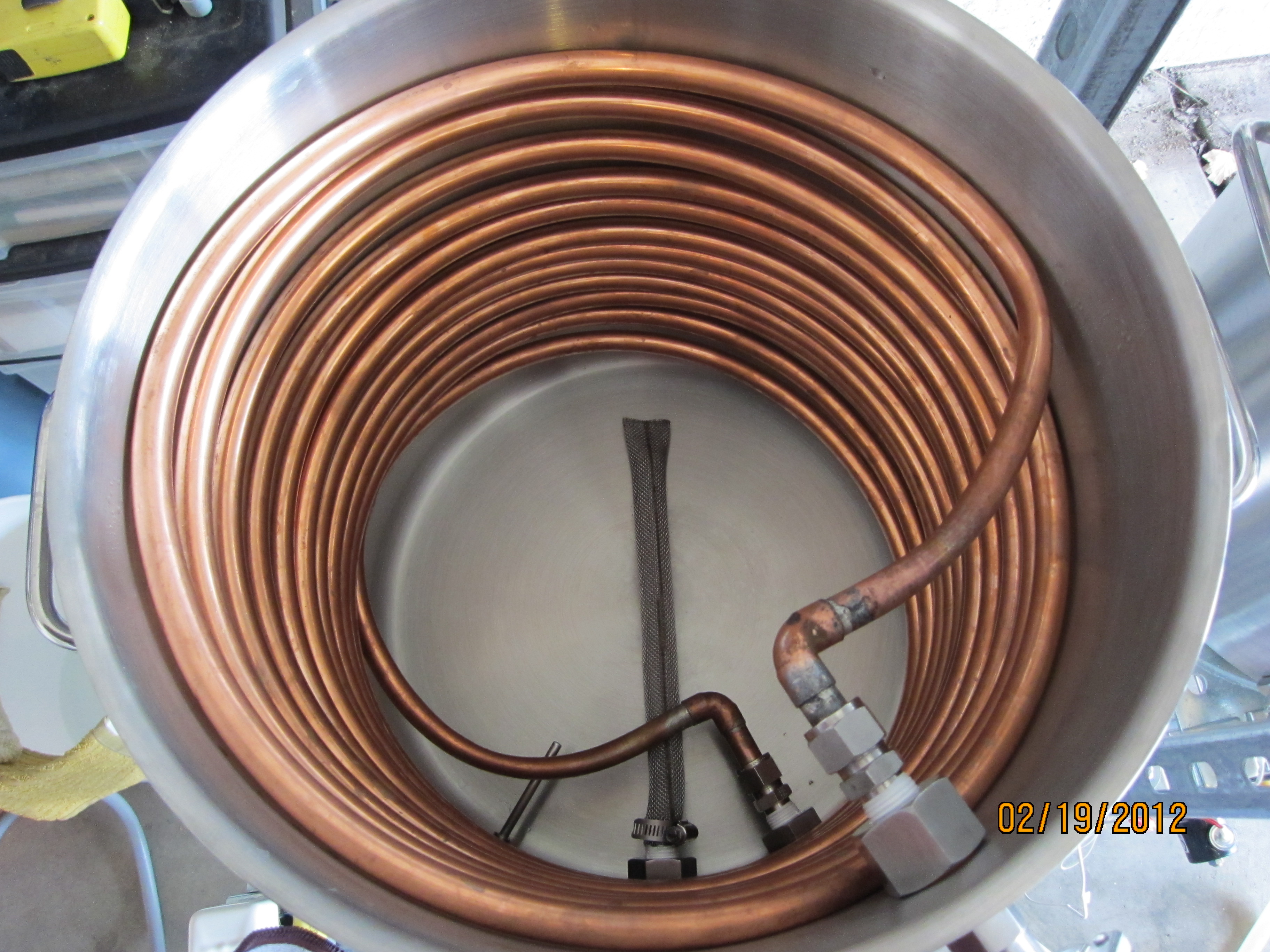

Mash Tun, Kettle Screen, Temp Probe, HLT heat transfer

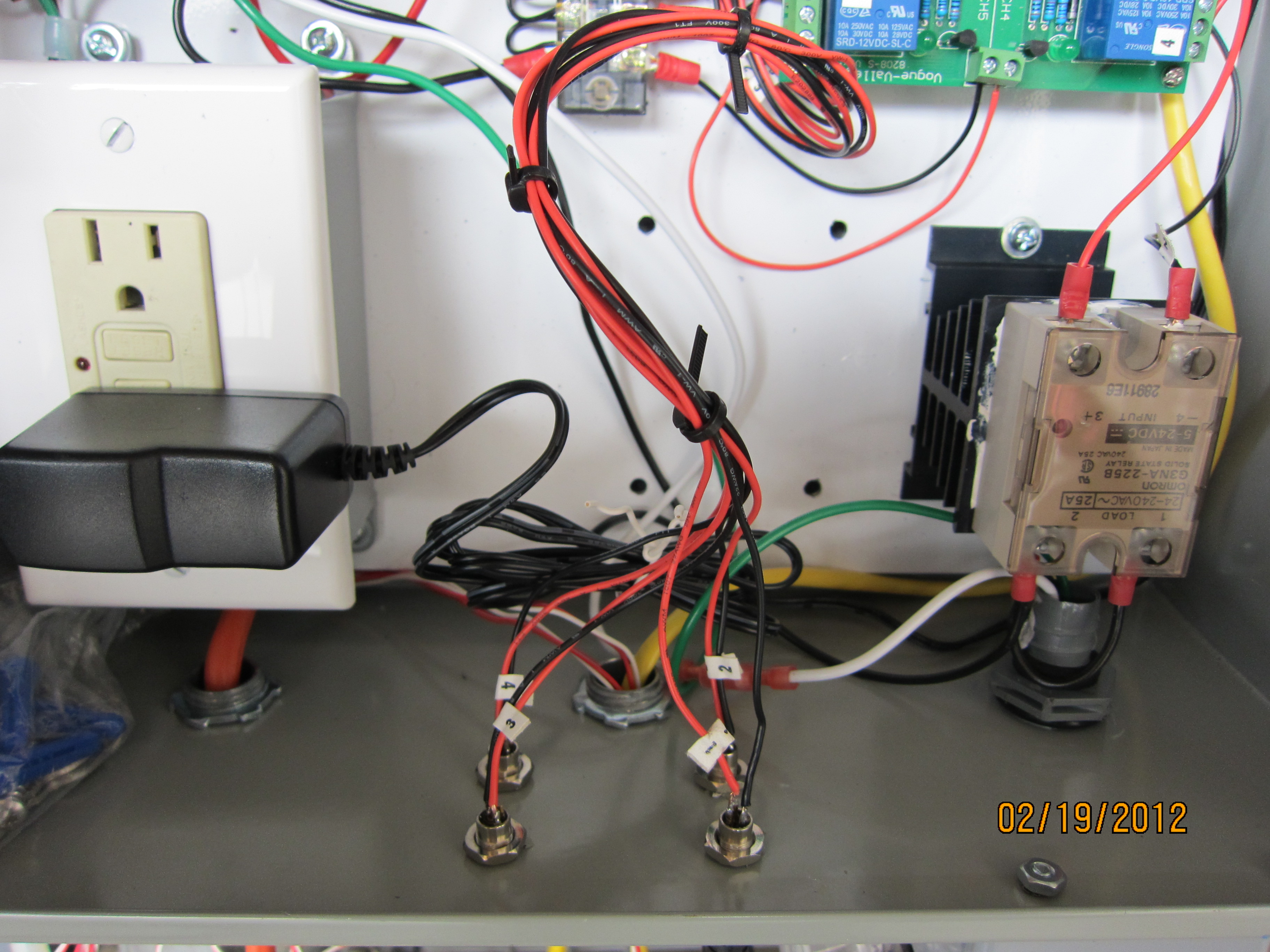

SSR, Temp Probe Connectors, GFI

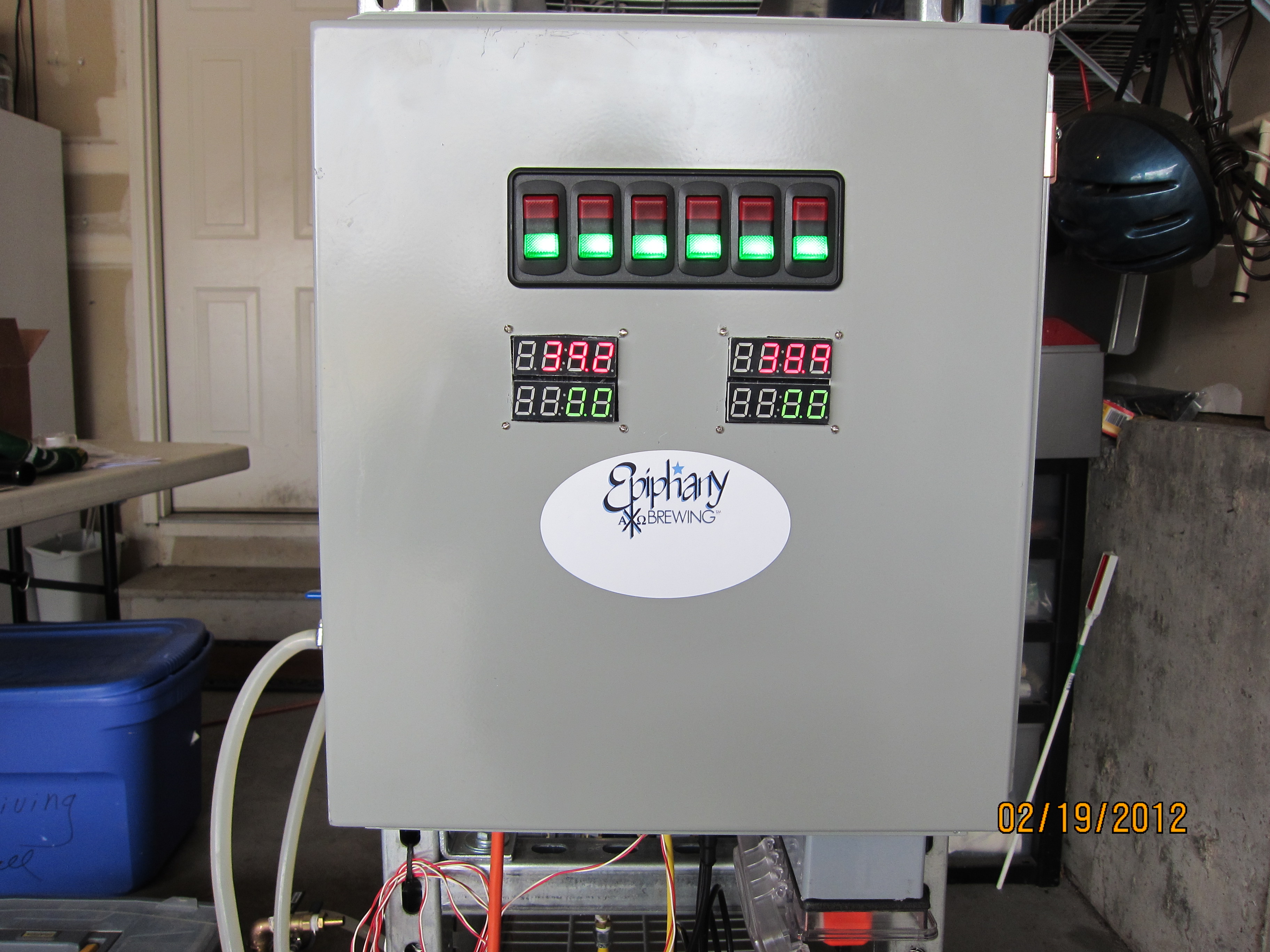

on-off-on Toggles, Temp Displays (panel cover back side)

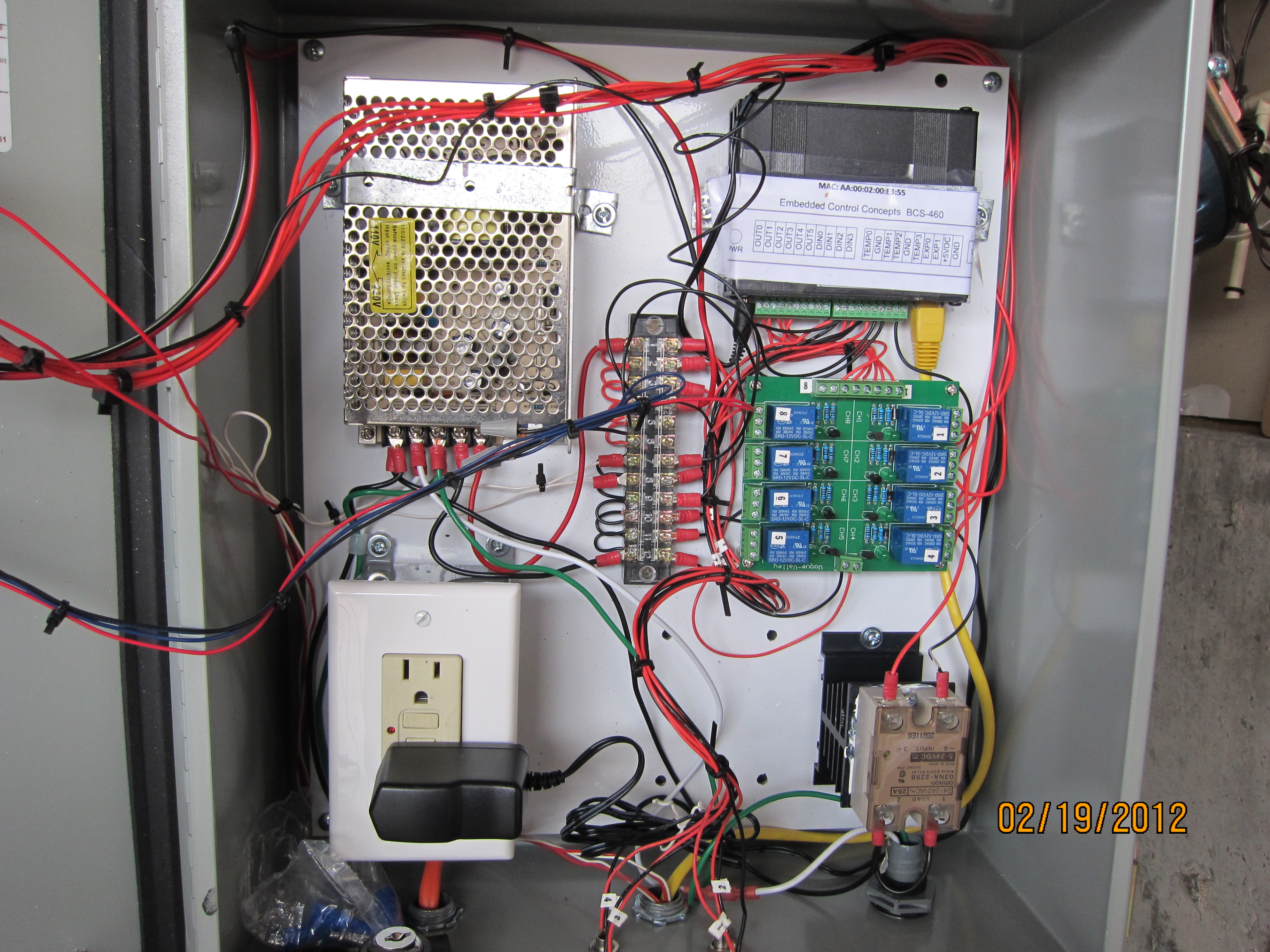

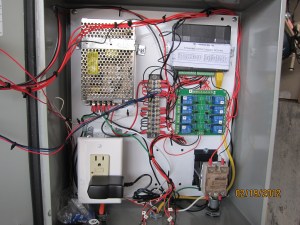

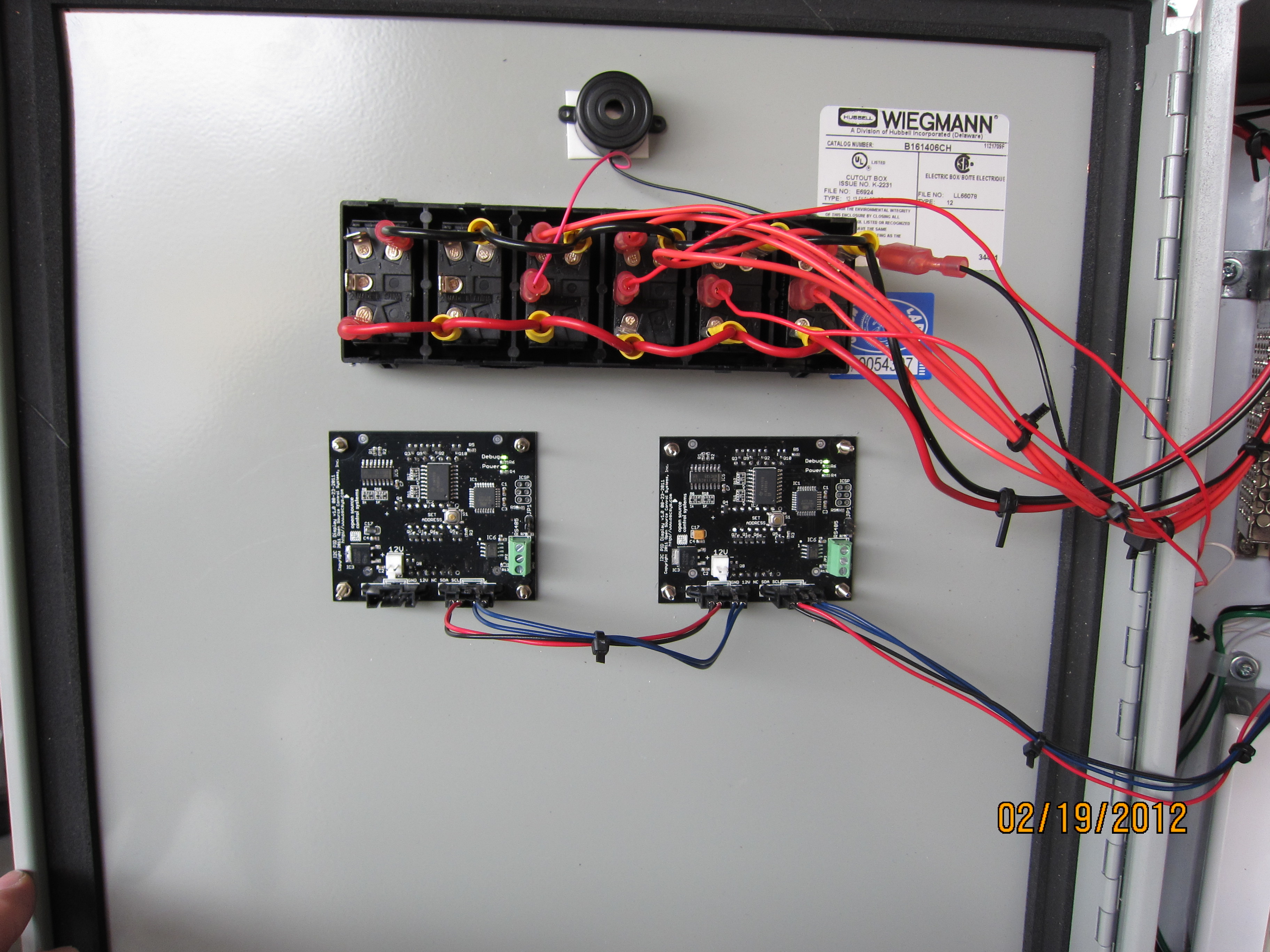

Control Panel - BCS-460, 12V 5A DC PS, 8 Relay Controller

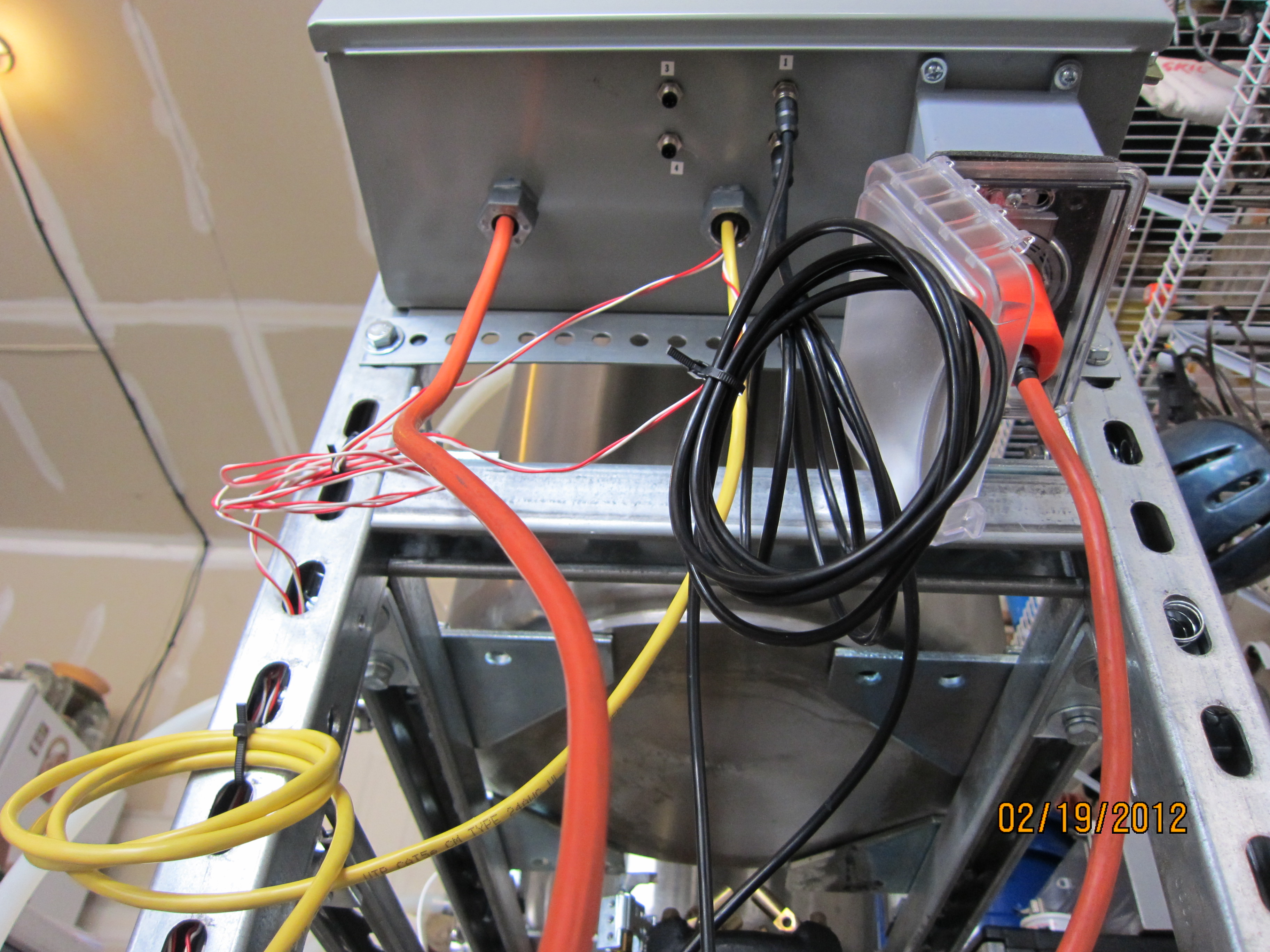

Controller Bottom - Goes In, Goes Out.

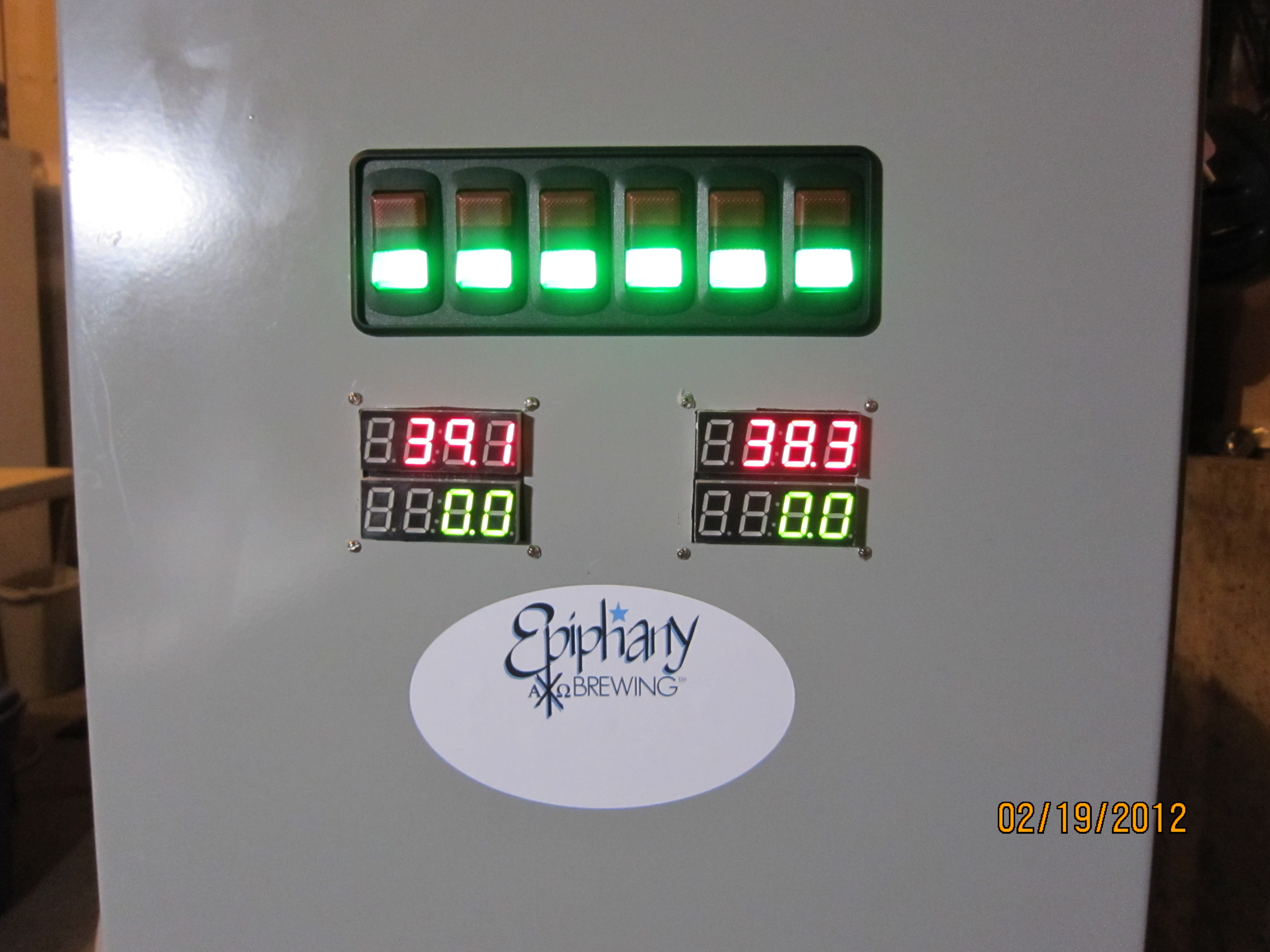

Controller - Front
Epiphany Brewing (tm)
